Light Steel Structure Agricultural Warehouse Fabrication Customized

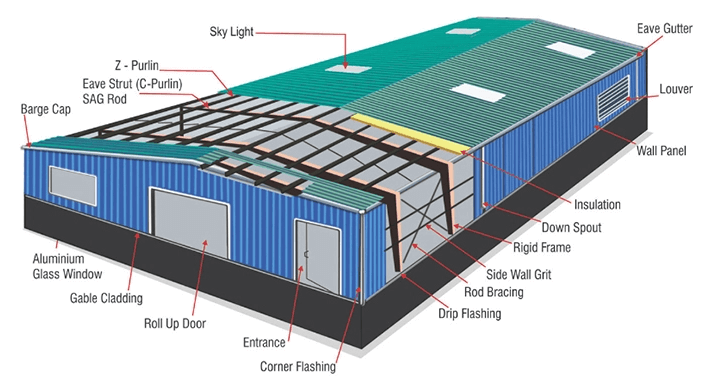

Steel structure building is a popular type of building system now, and its main load-bearing members are made of steel, including column, beam, foundation and roof truss, while roof and wall using variety of materials, such as sandwich panel, steel sheet, wire mesh, foam cement board, ALC board for different building application.
|
Name
|
Steel Structrue Building
|
|
Main Material
|
Q235 - Q420 Welded H Beam And Hot Rolled Section Steel
|
|
Surface
|
Painting Or Galvanizing
|
|

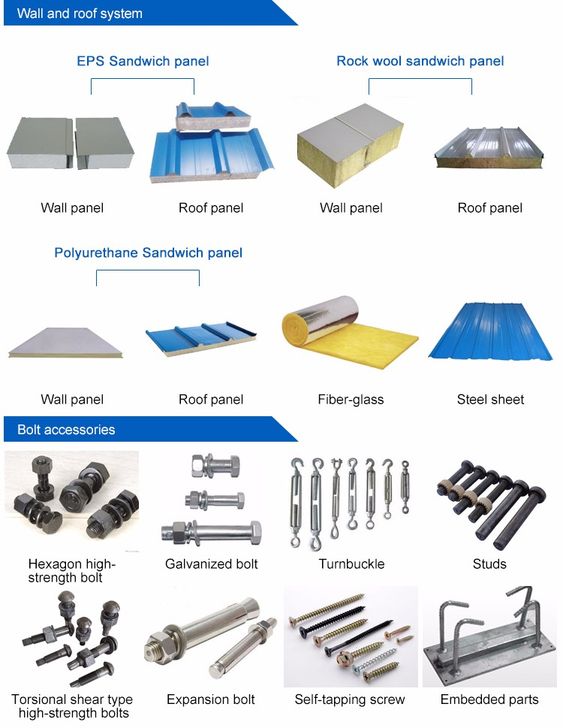

Roof And Wall Panel
|
EPS Sandwich Board, Single Corrugated Steel Plate, Glass Cotton Colored Board for Customers'Choice
|
|
Window
|
PVC Or Aluminum Alloy
|
|
Door
|
Sliding Door Or Rolling Shutter Door
|
|
Service
|
Design
|
We have experienced designers to design.
|
|
Manufacture
|
We can manufacture all kinds of steel structure products according to customers'needs.
|
|

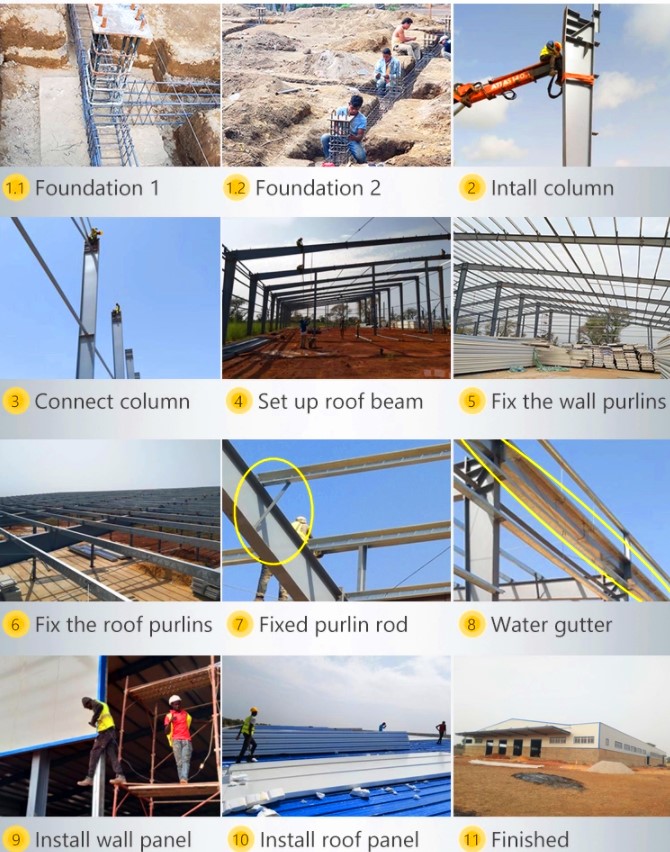

Installation
|
We provide detailed drawings to ensure installation. It also provides installation, supervision and training services. We can also
send a team of engineers to guide or install on site.
|
|
Packing
|
1. Steel structure components will be in nude packaging with proper protection. .Sandwich panels will be covered with plastic
film.
3. Bolts and other accessories will be loaded into wooden boxes.
4. Container Drying Treatment.
5. According to customer's requirement
|
|
Quality Inspection
|
Factory Self-inspectionCustomer Inspection
Third Party Inspection
|
Connection Method :
The columns are connected with the foundation by pre-embedding anchor bolt The beams and columns, beams and beams are connected with high intensity bolts
Construction Advantage:
Could be designed according to different purpose and environment condition Long life span, could be more than 50 years Quick and easy install work and the more economic friendly Could be moved and recycle Strong seismic and wind resistance
Features
1) Cost saving and transportation convenient, customer design available.
2) The main beam and column are qualified steel.
3) The steel structure makes the house resisting heavy wind of 140km/h and 8 grade earthquake.
4) Good ability to assemble and disassemble for several times without damage.
5) Widly used in construction site,office building,dormitory etc.
6) Environmental protection effect is good. Steel structure housing construction greatly reduces the sand, stone, the dosage of
the ash, used materials mainly green, recyclable or degradation materials, building dismantled, most of the material can be
recycled or degradation, won't cause much rubbish.
Building Purpose:
we will recommend the best design for the purpose of the building
A. Warehouse/Storage
B. Factory
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Shop
F. Office Space
G. Medical Warehouse
Company Profile:
Established in 2014, the company is a high-tech, diversified and export-oriented large-scale international
private enterprise integrating R&D, design, production, installation and construction at home and abroad,
and technical services.
It has the qualification certificate of overseas contracted project management issued by the Ministry of
Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc, and has long-term
cooperation with countries along the " Belt and Road".
The products and construction services have been exported to more than 50 countries around the world,
including Asia, Africa, North and South America. In addition, branches have been established in
Mozambique and Angola, which can undertake steel structure installation projects in Africa.
Products& Services:
Gusite's main products include steel structure industrial buildings, commercial buildings,airports, stadiums, greenhouses, light steel houses, livestock breeding houses, interior and exterior decoration materials, various doors and windows, etc.
It has its own design team which can provide customized design. lt can also produce series of steel structure products with different structures and specifications. lt has complete processing and manufacturing equipment and strong installation capabilities. lt can supply a full set of materials required for steel structure construction projects, and provide all installation services and technical consultations.
Production Capacity:
--Strength and durability: Steel is known for its high strength-to-weight ratio, making it an incredibly strong material. It can withstand heavy loads and extreme weather conditions, ensuring the longevity and stability of the structure.
--Design flexibility: Steel construction allows for greater design flexibility, as it can be fabricated into various shapes and sizes. This flexibility enables architects and engineers to create unique and innovative structures.
--Speed of construction: Steel structures can be pre-fabricated off-site, which reduces construction time significantly. This faster construction process can save both time and money.
--Cost-effectiveness: Although the initial cost of steel construction may be higher compared to some other materials, the long-term cost benefits often outweigh this. The durability of steel reduces the need for frequent maintenance and repair, leading to lower life-cycle costs.
Qualification certificates:
Philosophy& Vision:
Since its establishment, Gusite has been constantly seeking sustainable development and has created value for society and customers with the service tenet of "Quality first. Customer first". Facing the current good situation of the booming international economy, with brand-new concepts, scientific management and high-quality services, the company strictly follows the development idea of 'market-oriented, large-scale and scientific", doing a good job in the present, focusing on the future, and striving to move forward to the ranks of the first-class construction enterprises in the country.
Product packaging:
1. Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hung with tags.
2. Fasteners are packed in wooden cases
3. The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.
4. Container type: 40ft HC, 20ft GP
